Established in 2000, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities. YTL is a professional China Uploaded Data Measuring Device Regularly Concentrator Suppliers and Uploaded Data Measuring Device Regularly Concentrator Company. With more than 20 years of energy metering experience, we devote ourselves to providing competitive projects and creating value for customers. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 2000 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. With provincial high-tech enterprise R&D center, YTL is the Top 100-enterprise with most investment value in Zhejiang. And“Yongtailong”is the famous brand of Zhejiang. For any new products of customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure that excellent quality products are made.
Uploaded Data Measuring Device Regularly Concentrator Suppliers
Uploaded Data Measuring Device Regularly Concentrator

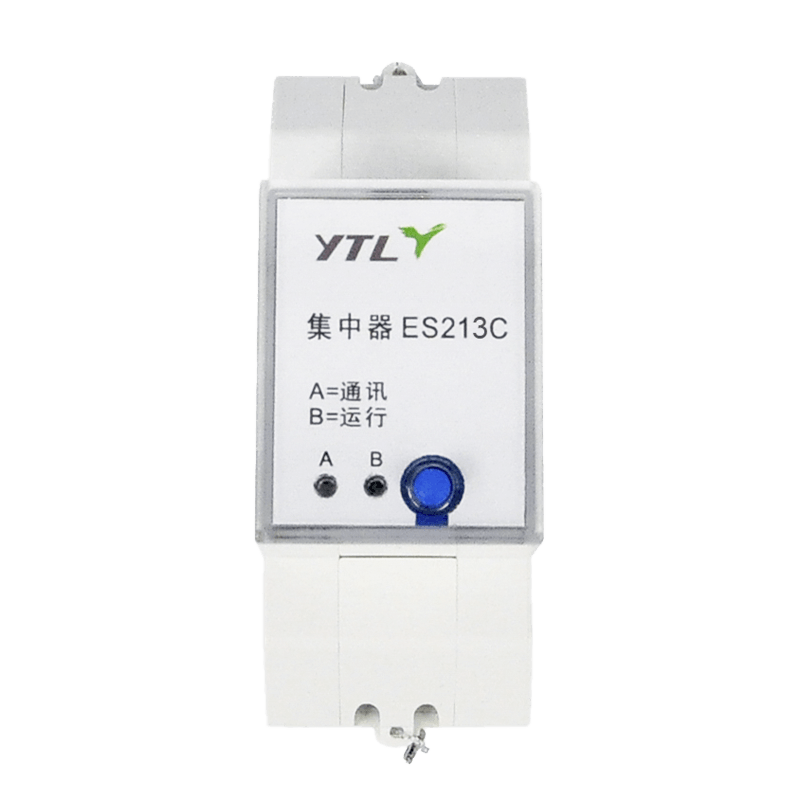

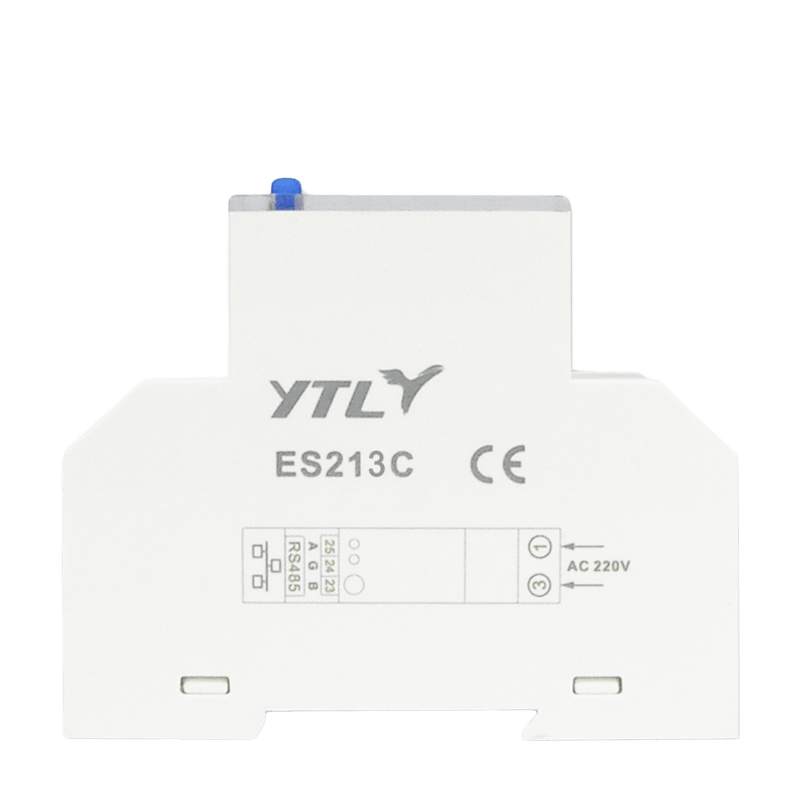

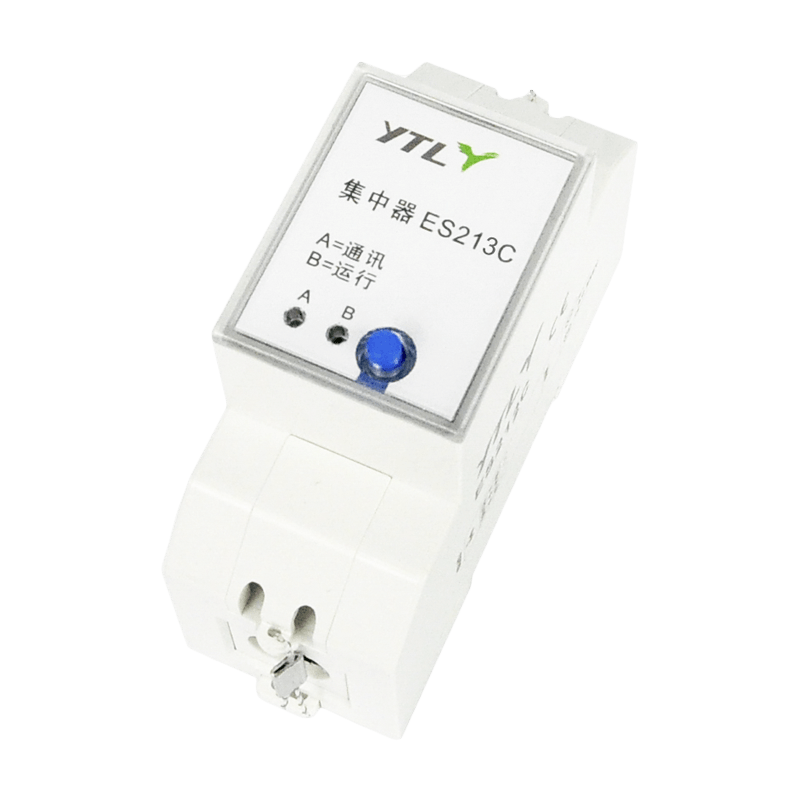

Model ES213C is a concentrator with Ethernet communication which can receive the real-time tasks issued by the master station through Ethernet , read the measurement data of the measuring device regularly and upload it to the master station. In addition, it can receive the data uploaded by the electricity meter actively through RS485 and upload it to the cloud.
- Technical Parameters
- Description

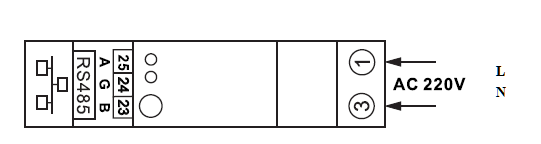

- Connectlon Diagram
- Meter Dimensions
- det6
-
Reference voltage： 220V±20% Rated frequency：? 50Hz-60Hz communication： Ethernet
RS485 baud rate： 38400 Ethernet：
10/100M Adaptive Ethernet interface do not support AUTO MDI/MDIX
-
A communication
B working
C blue button: Long press 5-9S, release the button after the first fast blinking of LED B, restart the meter.????Long press 14-18S, release the button after the second fast blinking of LED B, set to factory default.
Notes: Press the button to keep LED B permanently on, and release it when LED B fast blinking.
?Material?????Base：? ? ? ? ? ? ? ? PC+ABS Alloy material
Cover：? ? ? ? ? ? ? PC+ABS Alloy material
Terminal cover： PC+ABS Alloy material
Terminal block： PC+ABS Alloy material
Lock：? ? ? ? ? ? ? ? ABS
?
-
-
Height 90.0mm
Width 36.0mm
Depth 72.0mm
-
