Established in 2000, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities. YTL is a professional China YTL ANSI Round Meter China Single Phase Energy Pulse Meter Suppliers and YTL ANSI Round Meter China Single Phase Energy Pulse Meter Company. With more than 20 years of energy metering experience, we devote ourselves to providing competitive projects and creating value for customers. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 2000 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. With provincial high-tech enterprise R&D center, YTL is the Top 100-enterprise with most investment value in Zhejiang. And“Yongtailong”is the famous brand of Zhejiang. For any new products of customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure that excellent quality products are made.
YTL ANSI Round Meter China Single Phase Energy Pulse Meter Suppliers

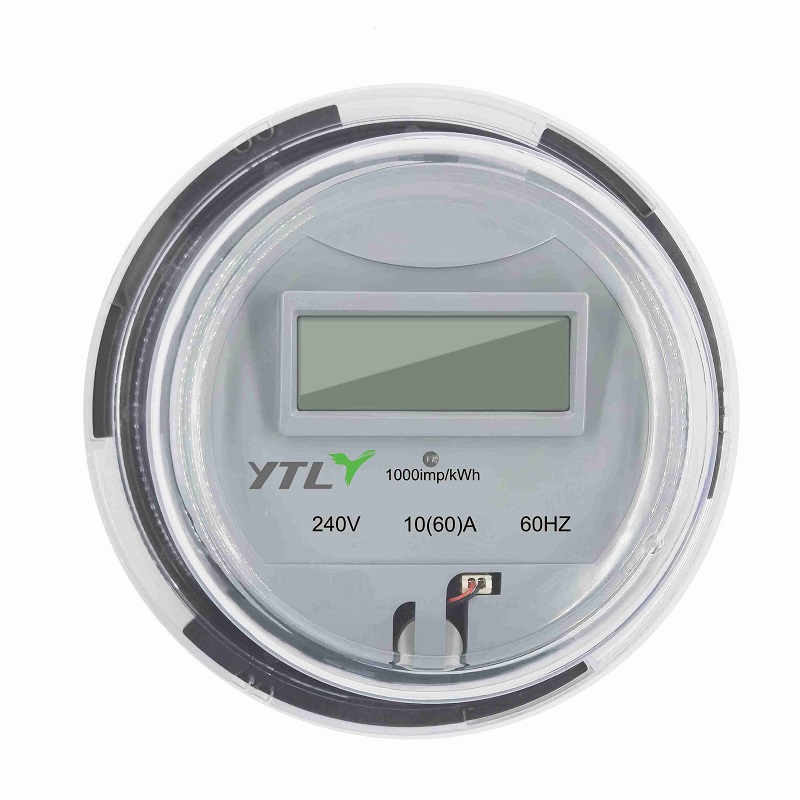

YTL ANSI Round Meter China Single Phase Energy Pulse Meter
This is a socket installation round meter, also called ANSI standard meter, accordance with ANSI C12.18 standard. The round meter has a variety of communication IR, RF, GPRS communication; Functional event alarm, load profile, tariff, demand, active and reactive power; The current can be designed up to 200A
- TechnicalParameters
- ConnectlonDiagram

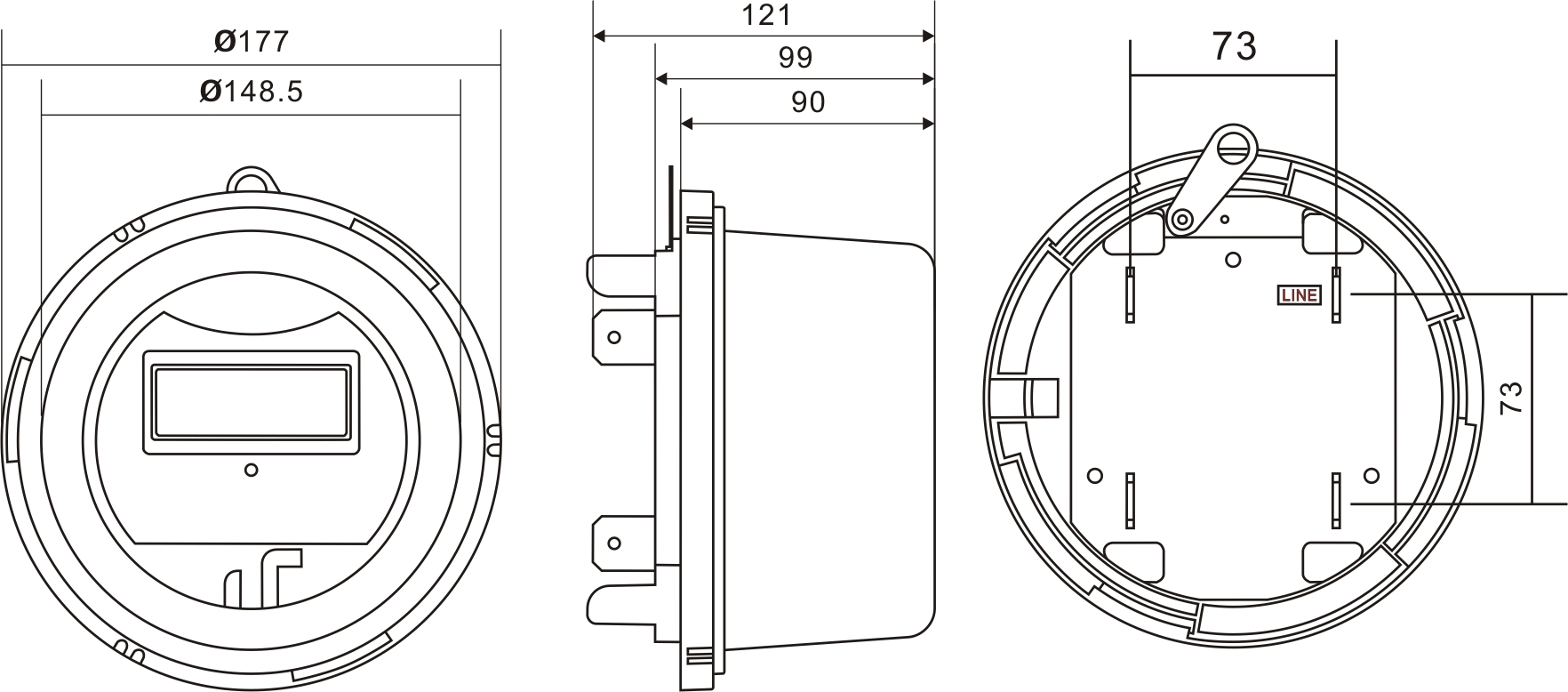

- MeterDimensions
- det6
- VEDIO
-
Type
Parameter
Meter type
Single phase 3 wire outdoor meter
voltage
240V±20%
Rated Current Ib
10A
Max Current Imax
60A
Work Frequency
60HZ
Starting current
3W
Class Accuracy
Accuracy class of 0.5% or below
Meter Constant
1000imp/kWh
Display
LCD
Operation Temperature:
-10℃~+60℃
Relative Humidity
95%?non-condensing
Meter life expectancy
15 years
-
-
